HIKMICRO HIK EXPLORER E20 Android Phone to Thermal Imager Conversion

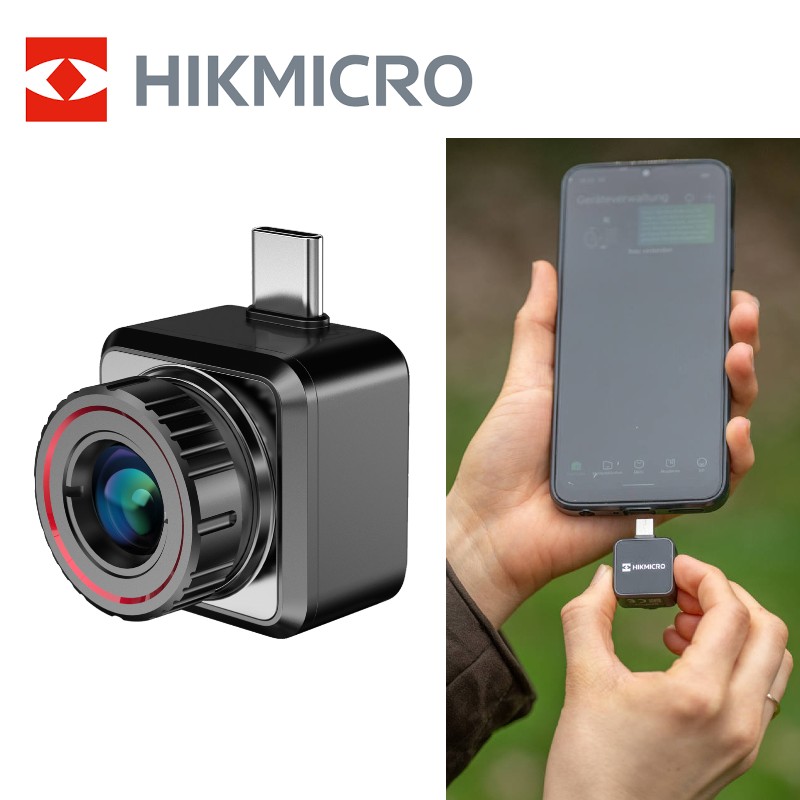

The HIKMICRO EXPLORER E20 Clip-In Thermal Imager is a radically small, versatile, and powerful device. It slots straight into any Android phone or tablet that has a USB Type C socket and transforms the way the user can see the world – and at the very low price of £329.99.

Weighing in at just 26 grams and measuring under 27mm in each dimension, the EXPLORER requires no batteries, drawing only minimal power from the smartphone or tablet. It can be carried easily, ready for near-instant use for spotting birds, animals, people (or indeed any other heat source) in any lighting conditions, including full darkness.

Fitted with a 256×192 thermal sensor and 10mm focal length lens system, the EXPLORER delivers similar thermal performance levels to the best-selling HIKMICRO Lynx 10mm monocular, allowing a good level of image detail and allows you to locate small animals and birds with ease.

The explorer is controlled by the HIKMICRO Sight app and you get access to the same features as the other HIKMICRO products including 4 colour palettes, digital zoom, and the ability to capture image and video.

£314.95

In stock

Description

SPECS

Thermal Module

  • Image Sensor: V0x Uncooled Focal Plane Arrays
  • Max. Resolution: 256×192
  • Frame Rate: 50 Hz
  • Pixel Internal: 12μm
  • Response Waveband: 8μm to 14μm
  • NETD: < 50mK [@25°C, F#=1.0]
  • Lens (focal length): 9.7mm
  • Detection Range: 970m
  • Aperture: F1.0
  • Magnification: 1x to 2x [Digital zoom 2x]
  • FOV (HxV), Degrees m@100m: 18.1°x13.6° / 31.8mx23.8m

Image Display

  • Image Mode: Birdwatching/ Red Hot/ White Hot/ Black Hot/ Rainbow/ Ironbow
  • Contrast Adjustment: Adjustable contrast from 0 to 100 by slider control
  • Brightness Adjustment: Adjustable contrast from 0 to 100 by slider control

System

  • Record Video: Yes
  • Capture Snapshot: Yes
  • PIP: Yes
  • Digital Magnetic Compass: Yes
  • Hot Track: Yes

System

  • Power Supply: USB Type-C interface
  • Power Consumption: 360mW
  • Working Temperature: -10°C TO 50°C
  • Dimension: 26.6mm x 26.6mm x 27.2mm
  • Weight: 26g
  • Protection Level: IP40
