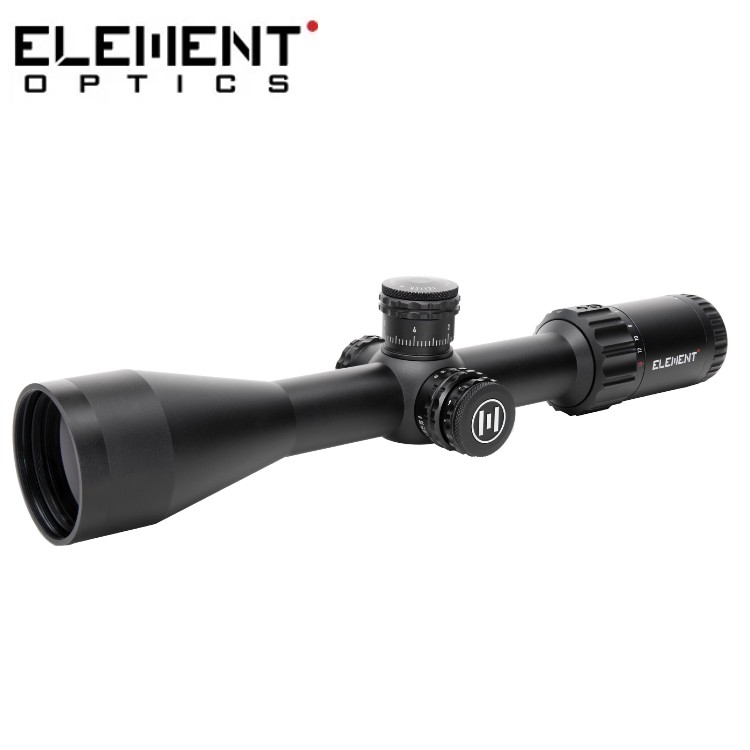

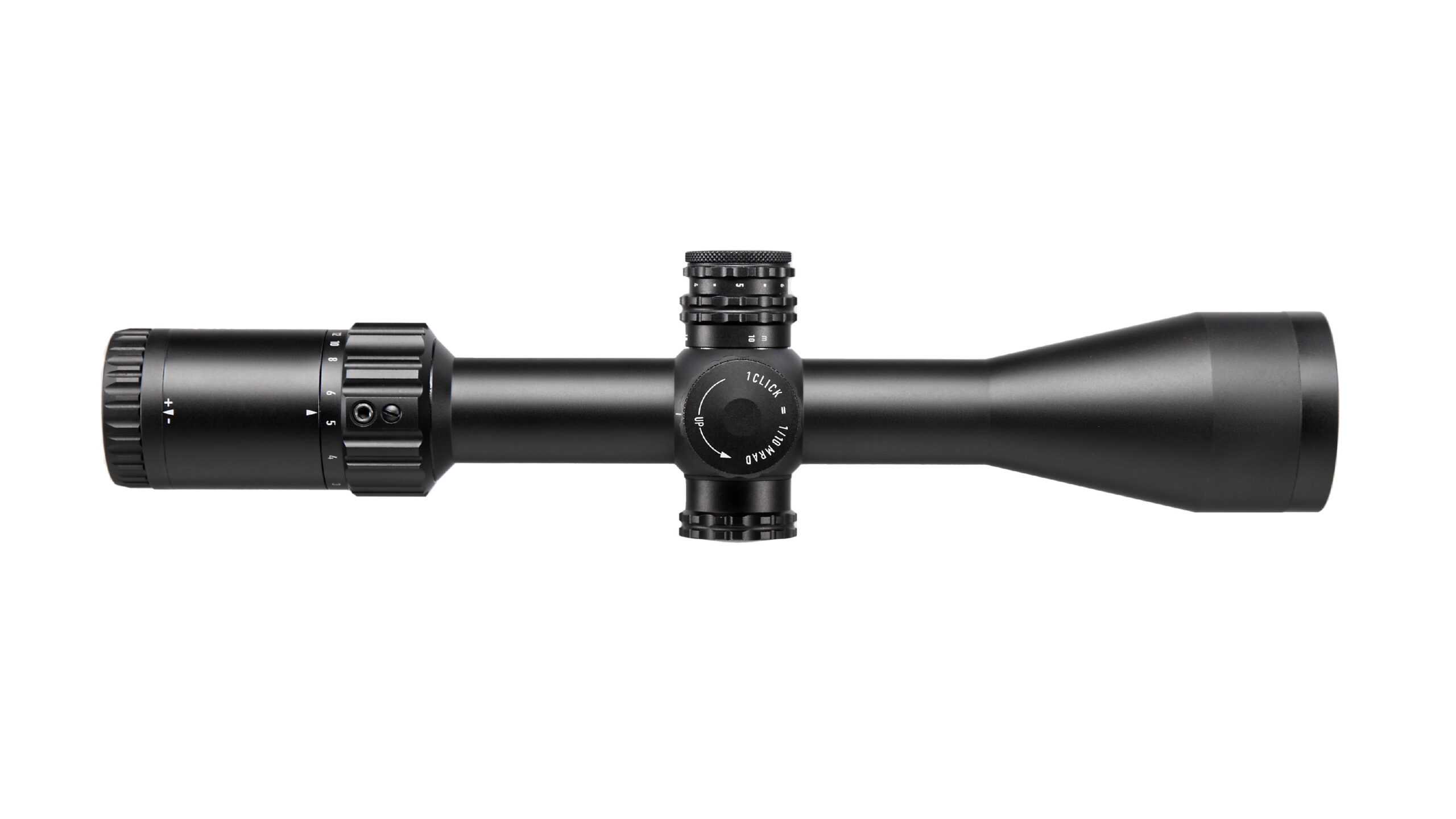

Element Optics Helix HDLR Illuminated Side Focus 2-16×50 Rifle Scope

We’ve designed the HELIX in a way that puts the important things first: clear glass, smart reticles, innovative features and a turret system superior to other products in the same price class. The HDLR takes things one step further, with ED Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. We’ve kept the ever popular Tool-Free system and Zero-Stop on the Elevation turret for ease of use when dealing for extended ranges, but have capped the windage for a more hunter-friendly, compact feel. Stringent quality control procedures give you peace of mind when taking that 1000 yard shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!

  • 30mm Main Body Tube
  • 2 -16x Zoom Optical System
  • Compact, Lightweight design
  • Second Focal Plane Reticle
  • Aircraft Grade Aluminum
  • Side Parallax: 10m-Infinity
  • Fully Multi-Coated Lenses with HD Glass
  • Tool-Free Exposed Elevation Turret, Capped Windage Turret
  • Zero Stop
  • Removable Magnification Throw Lever
  • Waterproof, Fogproof, Shockproof & Nitrogen Purged
  • Sunshade, Lens Cloth & Lens Caps Included

Sorry we are unable to export this items outside of the UK

£499.00

Clear
SKU: N/A Category: Tag:

Description

  • MAGNIFICATION RANGE 2-16x
    TUBE DIAMETER 30mm
    OBJECTIVE LENS DIAMETER 50mm
    EXIT PUPIL 8.5-3.1mm
    EYE RELIEF 101.6mm (4″)
    FIELD OF VIEW @100m: 20.2 – 2.51m
    CLICK VALUE 1/10 MRAD (6 MRAD / REV)
    ELEVATION ADJUSTMENT RANGE 100 MOA 29 MRAD
    WINDAGE ADJUSTMENT RANGE 45 MOA 13 MRAD
    MINIMUM PARALLAX 10 YDS 10 METERS
    LENGTH 13.39 Inches 340mm
    WEIGHT 27.1oz 770gr

Additional information

Reticle

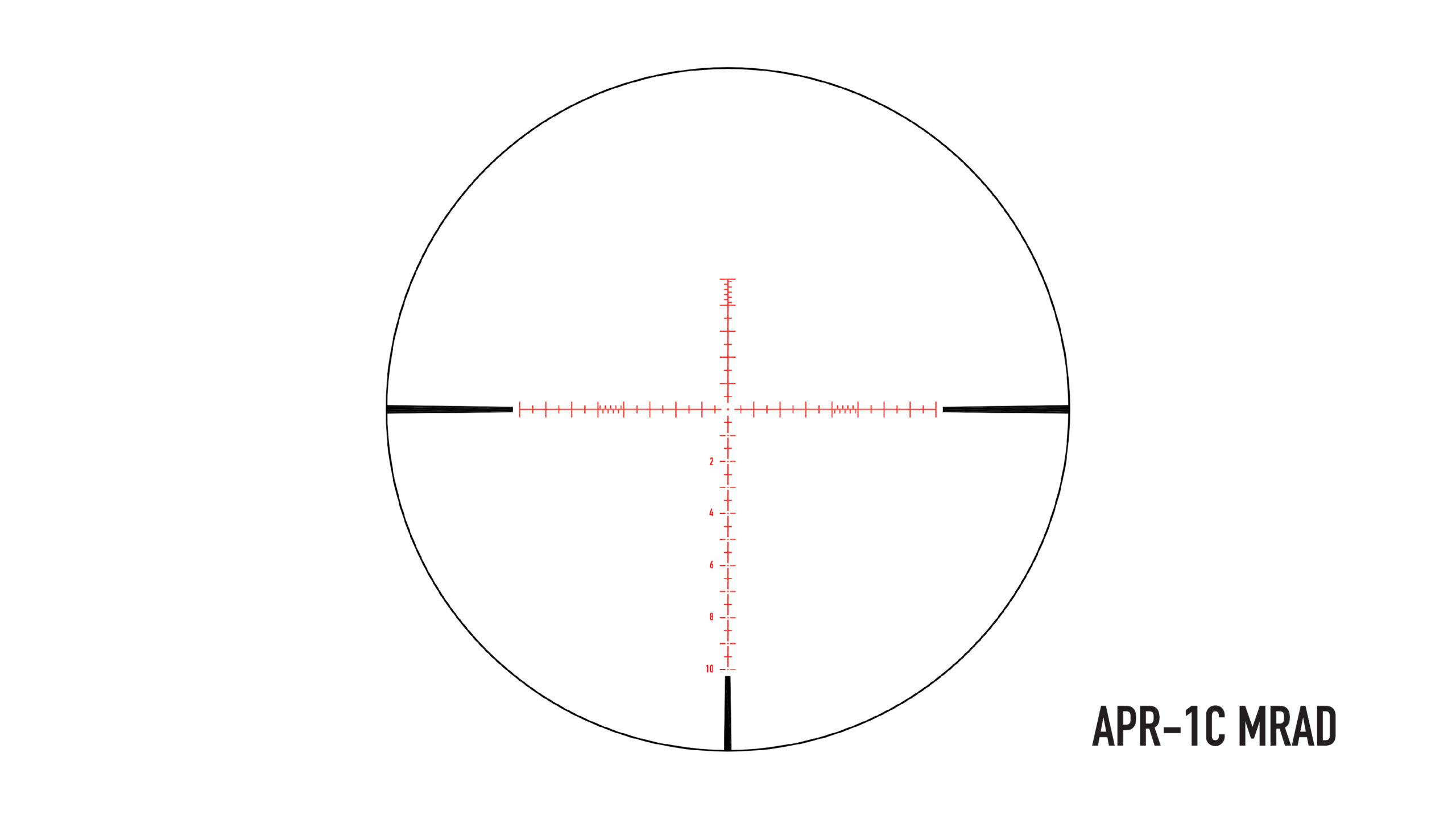

APR-1C MRAD, APR-1C MOA
